Original JDiag M100 Pro Full Set Universal Motorcycle Diagnostic Tool Motor Scan Battery Tester D87 D88 Function OBD2 Scanner

Description:

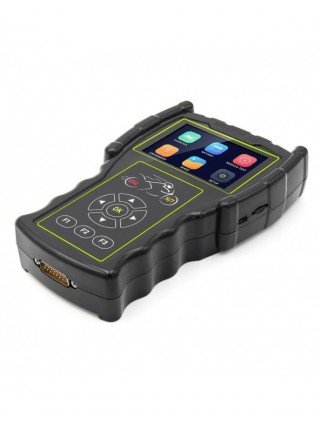

JDiag M100 Pro Moto Scanner is the new generation Handheld Motorcyle diagnostics tool, it covers virtually all major manufacturers' diagnostic functions. It helps the technician to diagnose problems and make repairs faster;many common procedures are written into the tool so the technician can follow them (injectors, ignition, coils, fuel pump, etc.).

It allows the technician to perform factory service procedures such as re-setting the service light, unlocking the immobilizer and configuring the immobilizer/alarm, making injection adjustments (COTrimmer), adjusting the throttle valve position sensor(TPS),re-setting auto adaptive parameters, and making idling adjustments.

The tool shows live data, displays ECUdata, reads stored faults(history) or live data (RPM,batteryvoltage,throttleangle).

Features:

1. Handheld operation, convenient and flexible to use

2. Support for SD cards to store data and upgrades,

3. Reserved CAN bus interface

4. 3.5-inch color screen, clear display.

5. Dynamic data with numerical and waveform.

Function:

1. Read system information

2. Read data stream

3. Read fault code

4. Erase fault code

5. Freeze data

6. CO idle speed adjustment

7. ABS system test

Specifications:

Power: DC10-15V

Operating Current: 250mA

Storage temperature: -10 C to 85 C

Operating temperature: 0 C to 70 C

Humidity: <90%

Upgrade Ports: USB port

Communication ports: COM port

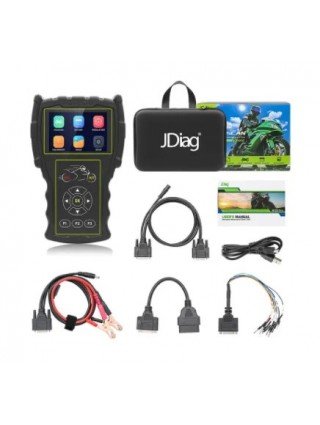

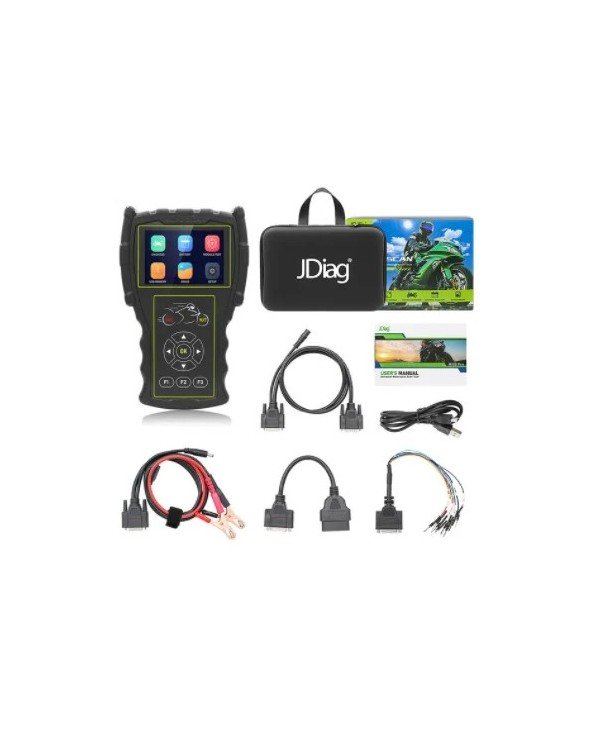

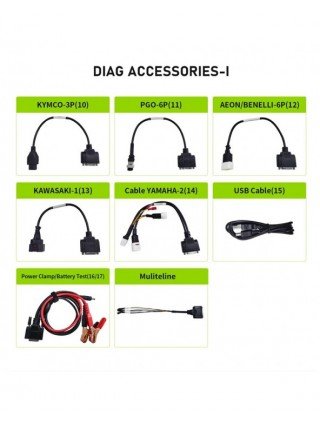

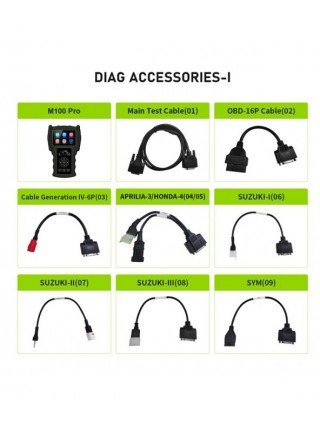

JDiag M100 Pro Full Set :

JDiag M100 Pro Bassic Version :
