Water Leakage Sensor

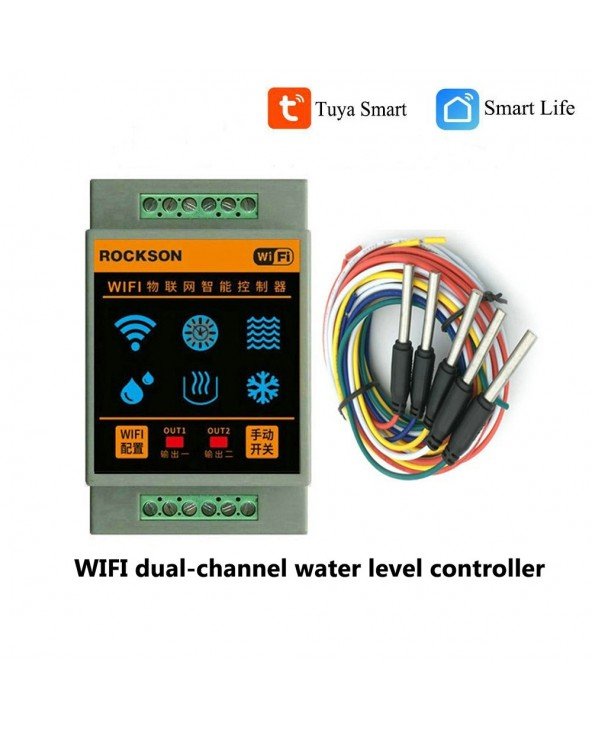

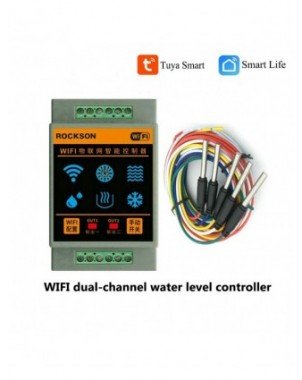

It is a WIFI intelligent water level controller, which can be set by APP to realize water level monitoring, Water supplement or drainage, high and low water level remote APP push alarm notification etc,.

The product is suitable for various water level control occasions, such as HVAC system, hot water process, municipal drainage, boiler, water tower, storage tank, breeding irrigation etc.

Main Features:

1. Real-Time Supervision: APP can display the current water level,

2. Turn on/off equipment (relay 1) remotely via App. Users can also control it on/off by manual switch button B.

3. Two relay outputs: Relay 1 control water level, Relay 2 for dry heating protection.

4. Preset''Add water'' or ''Pump water'' working mode, can auto turn on/off relay 1 when it reaches to the preset water level value.

5. Set upper and Lower limit value of water level alarm via APP, real-time push alarm notification to users' smartphone.

6. Can set relay 1 running or delay working time.

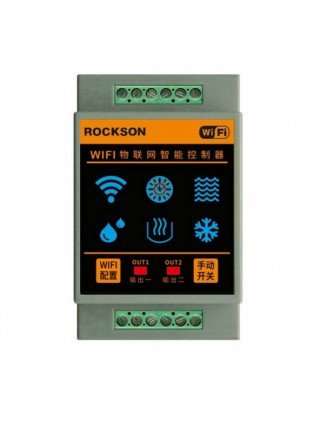

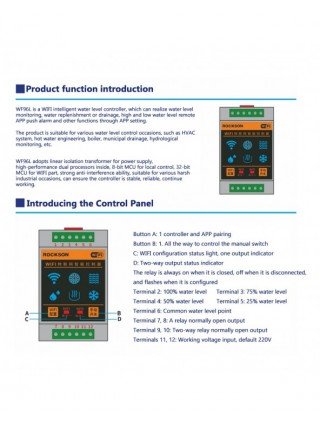

A: WIFI configuration button

B: On/Off Switch of Relay Output 1: Users can press the button B to switch on/off Relay 1 manually. It is only effective when the preset starting/stopping water level is not reached.

C: WIFI Configuration Indicator/ Relay Output 1 Status Indicator

D: Relay Output 2 Status Indicator

Remark:

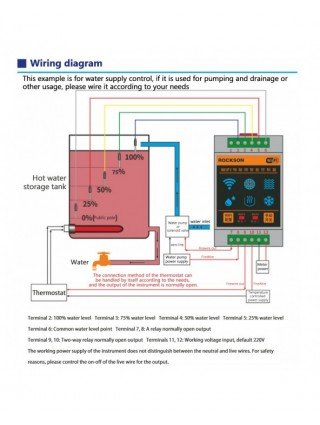

Terminal 1: No use.

Terminal 2: 100% water level

Terminal 3: 75% water level

Terminal 4: 50% water level

Terminal 5: 25% water level

Terminal 6: Public water point (COM)

Terminal 7,8: Relay Output 1 (Normal Open)

Terminal 9,10: Relay Output 2 (Normal Open)

Terminal 11,12: 220V Power Supply.
