Hikvision 4MP IP Camara Wifi DS-2CV2041G2-IDW Wireless Outdoor 2-Way Audio Bullet Security Surveillance Video Cameras Vigilancia

4 MP Outdoor Audio Fixed Bullet Network Camera

> High quality imaging with 4 MP resolution

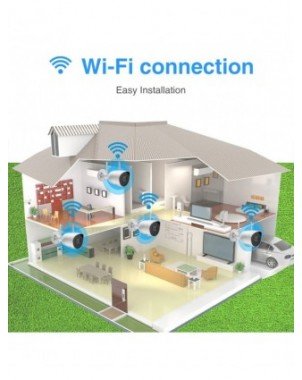

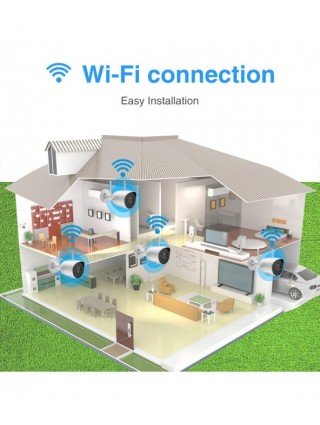

> Realizing Wi-Fi connection and easy installation
> Provides real-time security via built-in two-way audio
> Efficient H.265 compression technology
> EXIR 2.0, advanced infrared technology with long IR distance

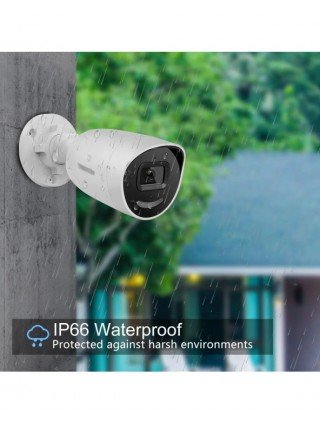

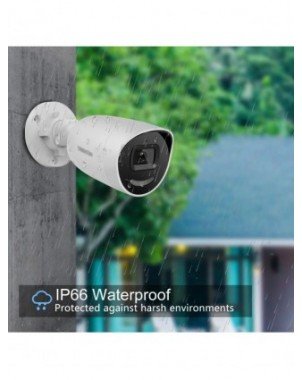

> Water and dust resistant (IP66)

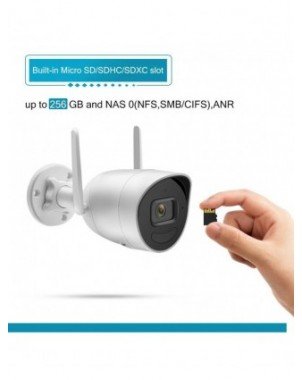

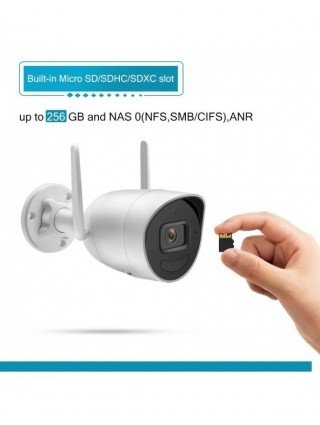

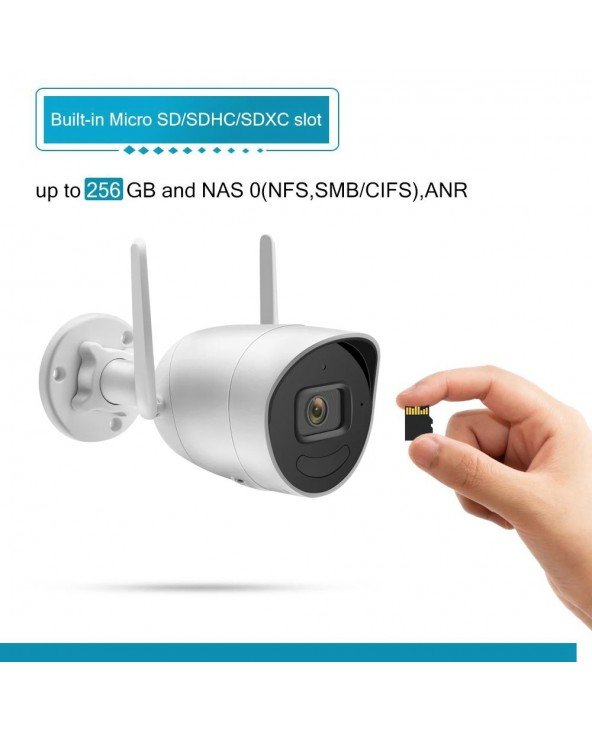

> Support micro SD/SDHC/SDXC card, up to 256 GB

Image Sensor1/2.7″ Progressive Scan CMOS

Min. Illumination0.005 Lux @ (F1.6, AGC ON)

Shutter Speed1/3 s to 1/100,000 s

P/NP/N

Wide Dynamic Range120 dB

Day & NightICR Cut

Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

2.Lens

2.8 mm, horizontal FOV 95°, vertical FOV 53°, diagonal FOV 111°

4 mm, horizontal FOV 77°, vertical FOV 40°, diagonal FOV 90°

ApertureF1.6

Lens MountM12

3.Illuminator

Smart Supplement LightYes

IR RangeUp to 30 m

Wavelength850 nm

4.Video

Max. Resolution2560 × 1440

50Hz: 20 fps (2560 × 1440)

25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20 fps (2560 × 1440)

30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

50Hz: 25 fps (640 × 360)

60Hz: 30 fps (640 × 360)

Main stream: H.265/H.264

Sub-stream: H.265/H.264

Video Bit Rate32 Kbps to 8 Mbps

H.264 TypeBaseLine Profile/Main Profile/High Profile

H.265 TypeMain Profile

H.264+Main stream supports

H.265+Main stream supports

Bit Rate ControlCBR/VBR

5.Audio

Environment Noise FilteringYes

Audio Sampling Rate8 kHz/16 kHz

Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Audio Bit Rate64Kbps(G.711 ulaw)/64Kbps(G.711 alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)/ 16 to 64Kbps(AAC)

6.Network

Simultaneous Live ViewUp to 6 channels

APIISAPI, SDK

ProtocolsTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour

Up to 32 users

3 levels: Administrator, Operator and User

SecurityPassword protection,complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS

Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR)

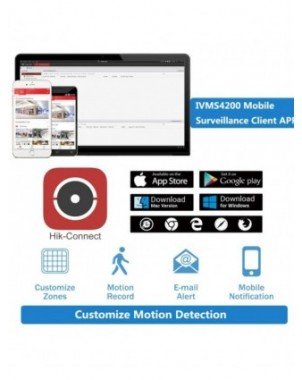

Wired network: iVMS-4200, Hik-Connect

Wi-Fi: iVMS-4200

Plug-in required live view: IE 10, IE 11

Local service: Chrome 57.0+, Firefox 52.0+

7.Wi-Fi

Encryption Mode64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM

Frequency Range2.412 GHz - 2.472 GHz

Channel Bandwidth20/40 MHz

802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM

Wireless RangeUp to 120 m (The performance varies based on actual environment)

Transfer Rate300 Mbps

8.Image

Day/Night SwitchDay, Night, Auto, Schedule

Image EnhancementBLC, HLC, 3D DNR

Image SettingsMirror, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

SNR≥ 52 dB

9.Interface

On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB

Hardware ResetYes

Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

10.Event

Basic Event Motion detection, audible alarm output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

11.General

Linkage MethodUpload to memory card/NAS, notify surveillance center, trigger record, trigger capture, audible warning

Web Client LanguageEnglish

General FunctionAnti-flicker, heartbeat, password reset via e-mail

Software ResetYes

Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply12 VDC ± 25%

Power Consumption And Current12 VDC, 0.6 A, max. 7 W

Power InterfaceØ5.5 mm coaxial power plug

MaterialPolycarbonate cover, polycarbonate body

175.6mm x 73mm × 89.1 mm (6.9″ x 2.9" × 3.5″)

Package Dimension260 × 125 × 125 mm (10.2" × 4.9" × 4.9")

Camera WeightApprox. 335 g (0.8 lb.)

With Package WeightApprox. 689 g (1.5 lb.)

12.Approval

FCC SDoC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

IC VoC (ICES-003: Issue 6, 2016);

KC (KN 32: 2015, KN 35: 2015)

FCC ID (FCC Part 15.247(BT or 2.4G));

IC ID (RSS-247(BT or 2.4G));

CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));

WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);

KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17);

ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);

LOA (IEC/EN 60950-1)

CE-RoHS (2011/65/EU)

WEEE (2012/19/EU)

Reach Regulation (EC) No 1907/2006

ProtectionIP66 (IEC 60529-2013)
