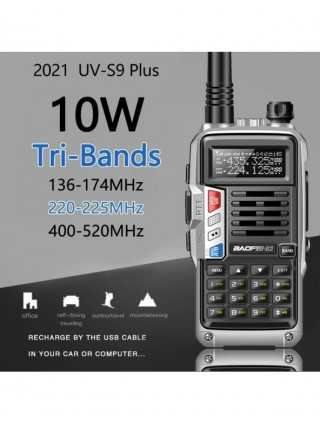

1. BaoFeng UV-SS9 PlusTri-band radio is upgrade of UV-5R. High Power .

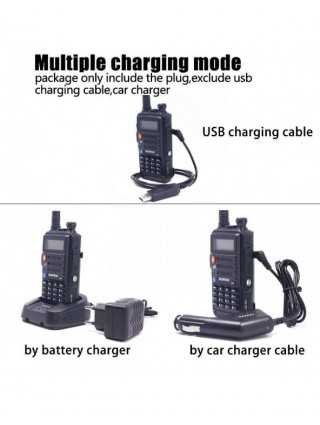

2. With optional methods to charge the battery.Multiple charging mode.
3. Frequency Range: VHF: 136-174MHz (RX/TX), UHF: 400-520MHz (RX/TX),220-260Mhz With 2 x Antenna (One is Specifically for 220-260Mhz）
65-108MHz (Only commercial FM radio reception). Channels:128 groups of storage channels,Broadband (Wide) 25khz / Narrowband (Narrow) 12.5khz Selectable.
4. Larger Capacity Li-ion Battery Equipped with a 2800mAh Li-ion battery. UV-SS9 Plus Tri-band is light weight and handy.Simply press PTT key to talk: even at night by switching on the built-in LED flashlight and built-in VOX Function hands-free communication.
Specification:
General
Frequency range
136-174MHz(Rx/Tx)
200-260MHz(Rx/Tx)
400-520MHz(Rx/Tx)
Memory channels
Up to 128 channels
Frequency stability
2.5ppm
Frequency step
2.5/5/6.25/10/12.5/25KHz
Antenna impedance
50 OHM
Operating temperature
-20°C-60°C
Supply voltage
Rechargeable Lithium-Ion 7.4V
Battery Capacity
2800mAh
Consumption in standby
<=75mA
Consumption in reception
380mA
Consumption in transmission
<=1.4A
Mode of operation
Simplex or semi-duplex
Dimensions
110x58x32mm
Weight
130g(approximate)
Transmitter
RF power
10W/1W
Modulation type
FM
Emission class
16K F3E/11KF3E(W/N)
Maximum deviation
<=±5KHz/<=±2.5KHz(W/N)
Spurious emission
<-60dB
Receiver
Receiver sensitivity
0.2V (at 12 dB SINAD)
Inter modulation
60dB
Audio output
1000mW
Adjacent channel selectivity
65/60dB
Package Included:
1 x BaoFeng UV-SS9 (136-174Mhz /220-260Mhz /400- 520Mhz)
1 x 2800mAh Li-ion Battery Pack
2 x Antenna (One is Specifically for 220-260Mhz）
1 x Headset
1 x Belt Clip
1 x Hand Strap
1 x Adapter(We will send you the suitable adapter according to your location)
1 x Desktop Charger ( 100V ~ 240V )
1 x Product Manual
1 x USB Cable
3CTLP62R-10050037187691091-12000026922300194
4 Prekės
Charakteristikos
Kilmė
Mainland China
Sertifikavimas
CE
Modelio numeris
BaoFeng UV-SS9 Plus
Medžiaga
Plastic
Prekės ženklo pavadinimas
Feker
Akumuliatoriaus talpa (mAh)
2800mAh
Matmenys
110x58x32mm
Svoris
130g(approximate)
Dažnių diapazonas
136-174MHz(Rx/Tx)200-260MHz(Rx/Tx)400-520MHz(Rx/
Darbinė temperatūra
-20°C-60°C
Atsparus vandeniui / Atsparus vandeniui
No
Didžiausias diapazonas
5km-10km
Is_Display
Yes
Walkie Talkie tipas
Portable
Išėjimo galia (w)
5w-10w
Saugojimo kanalas
Up to 128 channels
Antenos varža
50 OHM
Dažnio stabilumas
2.5ppm
Dažnio žingsnis
2.5/5/6.25/10/12.5/25KHz
Maitinimo įtampa
Rechargeable Lithium-Ion 7.4V
Vartojimas budėjimo režimu
75mA
Vartojimas priėmimo metu
380mA
Vartojimas perduodant
1.4A
Veikimo režimas
Simplex or semi-duplex
RF galia
10W/1W
Moduliacijos tipas
FM
Didžiausias nuokrypis
±5KHz/±2.5KHz(W/N)
Netikra emisija
-60dB
